An organized laydown yard is the cornerstone of smooth operations on any large construction project. A laydown yard – essentially an outdoor staging area or temporary warehouse – is where materials, equipment, and components are stored until they’re needed on site. When it’s planned and managed carefully, a laydown yard ensures that the right materials are in the right place at the right time. This avoids costly delays, damage, and double handling. In this guide, we’ll walk through how to plan, organize, and manage your laydown yard to maximise efficiency. We’ll cover yard layout, material organisation, safety and security, and cross-team coordination – all backed by practical tips and examples.

This article also highlights best practices for maintaining full inventory visibility across all departments, so everyone on your team can see what’s available and where. Later, we’ll explore how a map-based inventory tool can tie these practices together, providing a single, visual view of your parts and materials for total clarity.

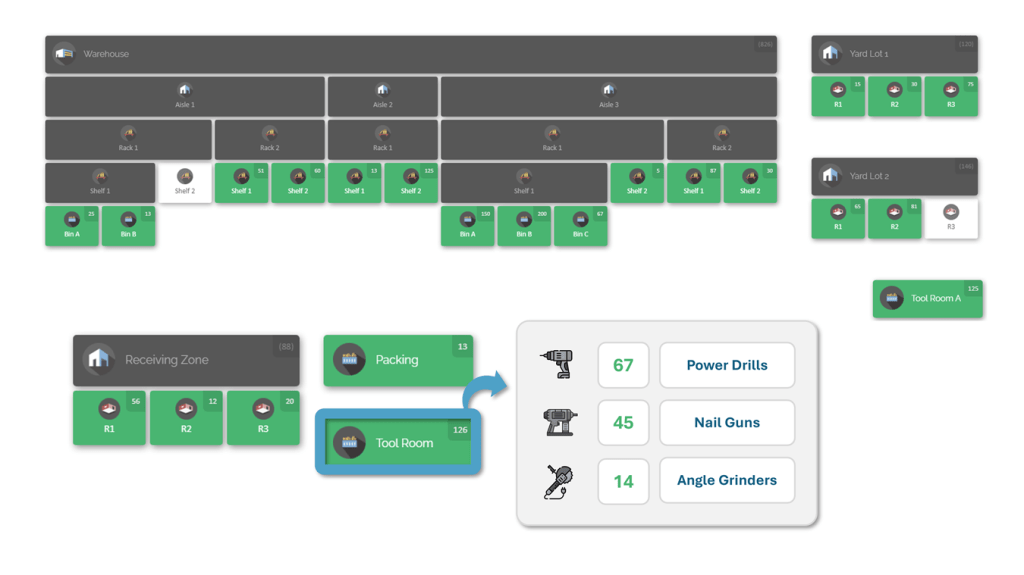

By using a visual map like the one above, every team member can click on a zone to see exactly what materials are stored there and in what quantities. This clarity is especially helpful on large sites where multiple trades and vendors use shared storage areas. You’ll see later how such a map can be built and updated in real time by your inventory management software.

1. Planning Your Laydown Yard Layout

A successful laydown yard begins with a solid plan. Before any materials arrive, work with your project team to reserve and prepare the ideal space. Here are key considerations:

• Location and Accessibility: Choose a flat, accessible zone near the main work areas but clear of heavy traffic congestion. Ideally, the yard is just off the project access road so delivery trucks can enter, unload, and exit without blocking gates or interfering with ongoing work. Position the yard so that materials move in a logical flow from receiving into storage, and then onward to the installation areas.
• Size and Space Calculations: Make sure your yard is large enough to hold the expected materials with room for traffic. A common rule of thumb is to allow at least 150% of your estimated material footprint for the yard area. This extra space provides lanes for vehicles and equipment, room to manoeuvre loads, and buffer areas for unexpected deliveries. For small projects, a few hundred square metres may suffice; large industrial sites often require acres. Sketch out your site plan and overlay the laydown area to confirm space.
• Divide into Zones: Lay out distinct zones within the yard based on material type or project phase. For example, you might have separate areas for structural steel, concrete forms, mechanical supplies, or electrical gear. If the project spans multiple disciplines (e.g. civil, mechanical, electrical), designate zones for each team or trade. Label zones clearly on the site plan. Also include dedicated paths for forklifts or cranes and storage racks if needed. Early on, communicate this layout with all subcontractors so deliveries can be guided to the right zone.
• Ground Preparation: Ensure the surface is stable and level. Soft or poorly drained ground can bog down equipment and damage materials. Lay gravel, compacted fill, or temporary mats where needed to create a firm base. Good drainage is vital – water pooling under stored materials causes corrosion or rot. If heavy rain is forecast, you may need to tarp areas or erect temporary covered shelters to keep sensitive goods dry.
• Security and Perimeter: Plan fence lines, access gates, and security lighting to protect the yard. Ideally the yard is enclosed with mesh fencing or barriers, and a single gated entry is monitored. High-value or small critical items should be stored in the most visible, secure sections or even locked containers. Lighting and CCTV (if available) help deter theft after dark. Even a logbook or sign-in system for deliveries and equipment movement establishes accountability.
• Future Growth: Large projects evolve, so design the yard with flexibility. Leave extra open areas or spare pallet spaces for unexpected additional materials or equipment. If the project duration is long or spans phases, you may later split the yard into new zones or open satellite laydown areas closer to new work sites.

Plan the layout before breaking ground. A clear diagram on the site map will guide everyone and prevent confusion. Once materials start arriving, regularly revisit the plan – as work progresses, the most needed materials should be relocated to the front of the yard, and empty zones can be re-purposed. Treat the laydown yard as a dynamic workspace, not a static lot. This agility keeps your workflow efficient.

2. Organising Materials for Efficient Staging

After planning the yard, the next step is organising the materials within it. Thoughtful organisation makes it fast and easy for crews to find what they need and for managers to track inventory. Follow these guidelines:

• Group by Trade or Phase: Store related items together. For example, keep all the scaffolding components in one area, all electrical conduits and wiring in another, and plumbing pipes in their own zone. If you have a schedule (e.g. a Gantt chart of installs), stage materials in the order they will be used. Place early-phase materials (foundations, structural steel) at the front of the yard and finish-phase items (drywall, finishes) toward the back. This minimizes handling and double-storage moves.
• Stacking and Storage: Use appropriate storage methods for each material. Heavy long items (beams, pipes, lumber) can lie on level ground or in cradle racks. Store pallets of bricks or blocks on leveler trailers or pallet racks if possible. Sensitive items (electrical panels, mechanical pumps) should be off the ground on pallets or shelves and under cover. Smaller hardware (fasteners, fittings) goes into clearly labelled bins or crates. If weather is an issue, cover stock with tarps or use temporary sheds. Wherever possible, implement first-in/first-out by rotating stacks so older stock is used first, preventing obsolete or expired materials from accumulating.
• Label Everything: Clearly label each storage location and its contents. Each zone and rack should have a sign or code (for example, “Zone A – Structural Steel” or “Bin #5 – HVAC Ductwork”). Label individual boxes or pallets with part descriptions. Use weather-resistant tags or printed labels. Color-coding can help quick identification (e.g. red-tagged boxes for electrical items, blue for mechanical). If you use barcodes or QR labels, affix them to locations and pallets for fast scanning later. The goal is that anyone on site can look at the label and know exactly what should be there and where.
• Set Up a Receiving Area: Near the entrance to the yard, designate a small section for receiving inspections. When trucks arrive, crews should move new deliveries to this check-in area first. Here, verify quantities and quality against purchase orders. Use checklists or smartphone forms to log what arrived. Once approved, allocate the materials to their designated storage zones. Having a dedicated spot for receiving avoids mix-ups and ensures all incoming items are documented.
• Maintain Clear Aisles: Leave enough space between rows for forklifts, lifts, and foot traffic. Narrow or blocked lanes create delays and hazards. As you pile or rack materials, keep stack heights reasonable for safety and stability (often no higher than 2–3 times the base width). Mark walkways or forklift paths with cones or tape on the ground to maintain separation of pedestrians and vehicles. Good housekeeping practices – such as clearing scrap and waste daily – help keep the entire yard orderly and safe.
• Plan for Special Materials: Identify any hazardous materials (paints, solvents, fuels) and store them in compliance with regulations – usually in secondary containment and away from general stock. Similarly, keep tools and small high-value items locked up or under supervision. If your job site is spread out, you might set aside separate small laydown areas or lockers for each trade’s everyday tools to prevent constant shuttling from the main yard.
• Coordinate Lifts and Heavy Equipment: If you’ll use cranes or hoists, plan staging accordingly. For example, place crane pads or dense racking under crane boom reach. Store heavy bundles (steel beams, precast elements) within the crane’s lift radius so they can be picked and moved as needed. Ensure forklifts and telehandlers have ample turning space. Assign each piece of machinery a “parking” spot near fuel or charging stations. This reduces traffic chaos and wear on equipment.

Organising materials effectively means you spend more time building and less time searching or shuffling supplies. A well-organised yard keeps crews supplied right where they work, cuts double handling, and protects materials from damage.

3. Tracking Inventory and Documentation

Efficient staging requires keeping tabs on everything in the yard. Without proper documentation, materials can be “out of sight, out of mind,” leading to miscounts, shortages, or idle stock. Here’s how to maintain control over your inventory:

• Use Inventory Logs: Whether paper-based or digital, maintain an inventory log for the yard. When items arrive, record quantities, descriptions, and location zone. Update the log whenever materials are moved, used, or transferred to the field. If a delivery was late or short, note it immediately. This log provides a single source of truth about what is in the yard at any time. On large sites, daily inventory logs (electronic spreadsheets or a mobile app) can be as important as the material takeoff sheet.
• Label and Scan: If available, equip your receiving team with barcode scanners. When a delivery comes in, scan each box or pallet to register it in your system. Likewise, scanning locations (racks or bins) ties items to exact spots on your map or database. This reduces manual errors. Even if you don’t have barcode tech, insist on clear location codes and part numbers on all goods so that the paper log and your digital records (spreadsheets or inventory software) match the physical stock.
• Perform Cycle Counts: Regularly verify that your recorded inventory matches what’s on the ground. Instead of waiting for a full stocktake at the end of a project, do cycle counts of high-usage or high-value items weekly or monthly. For example, pick one trade’s materials each week to count. Reconcile any discrepancies in real time. Cycle counting catches mix-ups early (such as items moved by one crew not logged), preventing small errors from snowballing.
• Issue Materials with Documentation: Whenever parts or tools are checked out to a team (for example, an electrician taking conduit to the wiring area), require a form of issue slip. Even a simple “crew sign-out” sheet or digital record should note what was taken, by whom, and when. Some teams color-code or flag pilferable items to track usage. The act of documenting each issue, however rudimentary, ensures that you can trace where materials went and update your inventory accordingly.
• Track Deliveries and Usage: Maintain a daily log of all deliveries and movements. This could be as formal as a register book or as simple as notes on the project management app. Include delivery times, contents, and the zones they were sent to. Also note when materials leave the yard for installation. Over time, these logs become a useful audit trail (for instance, if there’s a dispute about missing items or quality issues) and help forecast usage.
• Centralise Your Data: If you can, use a shared system (even a central spreadsheet on a network or cloud drive) so that all departments refer to the same inventory information. Avoid letting each trade maintain its own list in a silo. A unified inventory record prevents confusion — for example, one team won’t inadvertently double-order materials if they see the total yard stock up-to-date. In a pinch, make sure at least the site supervisor or project engineer has the most current inventory snapshot to distribute to all parties.

Keeping the yard’s inventory accurate might seem like extra work, but the payoff is huge. Knowing exactly what you have at all times avoids over-ordering (which ties up budget and storage) and prevents delays caused by thinking an item is on site when it isn’t. Even simple accountability measures (like barcodes or logbooks) vastly improve reliability.

4. Safety, Security and Environmental Controls

An efficient laydown yard is also a safe one. Adhering to safety and security best practices not only protects people and materials but also keeps work flowing without incidents. Key considerations include:

• Regulatory Compliance: Follow all regulations for materials storage. This means maintaining clear access paths and fire lanes, limiting stack heights, and safely storing hazardous materials. For example, always keep at least three feet of clearance around stacked pallets and have fire extinguishers nearby. Display required warning signs (like “flammable”, “forklift crossing”, or “authorized personnel only”). Safety must be built into the yard plan from the start.
• Clear Traffic Management: Separate pedestrians, vehicles, and equipment routes with cones, barriers, or painted walkways. For instance, create a one-way loop for delivery trucks and forklifts so vehicles aren’t competing in narrow areas. Mark safe pedestrian paths and, if possible, install temporary walkways or crosswalks. Use speed limit signs and have spotters for backing vehicles. Well-marked traffic flow prevents accidents and keeps trucks moving smoothly without bottlenecks.
• Housekeeping: Keep the yard tidy. Remove scrap, empty pallets, and rubbish daily. Loose debris is a trip hazard and also blocks efficient staging. Store spill-cleanup materials on hand for oils or chemicals. Ensure drains and ditches are clear so water doesn’t accumulate near stored items. Good housekeeping is often overlooked, but it pays dividends in safety and morale. A clean yard signals professionalism and reduces the chances of mishaps.
• Weather Protection: Materials can be damaged by rain, sun, or extreme cold. Provide coverings for moisture-sensitive items. For example, stack lumber off the ground and under sheeting, store metal at a slight incline so water runs off, and keep electrical panels elevated and covered. In winter, have de-icing plan or heated shelters for adhesives and paints. Damage prevention is part of yard efficiency — replacing or reordering damaged supplies is costly and delays work.
• Security Measures: Implement secure fencing around the yard and have a controlled entry point, ideally staffed or locked after hours. Consider a daily check-in/out process for tools and equipment. For high-risk items (like copper wire, fuel, or scaffolding hardware), use lockable trailers or high-visibility storage. Outside working hours, even simply disconnecting forklift keys or locking container doors adds theft deterrence. Inventory control pairs with security: when you know exactly what should be in the yard, missing items are immediately apparent.
• Emergency Access: Plan for emergency scenarios. Keep at least one lane clear and wide enough for fire trucks. Post emergency phone numbers and procedures visibly at the yard entrance. If the site is large, coordinate with local fire or emergency services so they know entry points and any hazardous areas. Quick emergency response hinges on an orderly yard layout as much as on quick reflexes.

Prioritising safety and security protects your workforce and your materials. When crews know the yard is well managed and safe, they work faster and with more confidence. A safe yard is efficient by design.

5. Coordinating Across Departments and Teams

On a large project, many different crews and subcontractors rely on the laydown yard. Ensuring everyone shares the same information and processes is crucial for efficient staging and usage.

• Communication & Meetings: Hold regular coordination meetings that include all relevant parties – site managers, foremen, procurement, and logistics staff. Discuss upcoming deliveries, current stock levels, and material needs. For example, before each day or week, review what’s in the yard and what is needed next. This prevents, say, an electrical crew showing up on Monday to find the conduit they needed arrived Friday but got put in the wrong place. Clear, scheduled communication (even a quick daily huddle) keeps everyone aligned on material status.
• Defined Responsibilities: Assign a dedicated yard manager or material coordinator. This person (or team) oversees staging, inventory records, and receiving. Other teams should know to coordinate with them for any changes. For instance, if a plumber needs a valve, the foreman should request it and update the log rather than simply taking it. When roles and processes are defined, inventory doesn’t quietly slip through the cracks.
• Shared Inventory Visibility: Empower every department with real-time visibility into inventory. This could be as simple as a shared spreadsheet or, ideally, a map-based tracking tool (more on that later). The goal is that an electrical supervisor can instantly check if his cable reels are in stock without leaving the field. When all teams use the same system, you eliminate silos. Departments won’t hoard resources because they can see exactly how much is available project-wide.
• Cross-Training and Onboarding: Ensure everyone who works in the yard knows the system. New hires or temporary workers should receive a brief orientation: show them the yard zones, how to read labels or maps, and the check-in/check-out process. Standard operating procedures (receiving, issuing, returning) should be clearly documented and easy to follow. Consistent processes (for example, always scanning and logging items upon delivery) are only effective if people understand and practice them.
• Use a Common Language: Standardise labels and part numbers across departments. If the structural crew calls a beam a “W14x30” and the equipment foreman writes “14W30”, confusion ensues. Make sure everyone refers to parts by a central naming/numbering convention. Cross-reference lists or codes (like SKUs or part numbers) help avoid mix-ups. This consistency extends to map labels or color codes you set up in the yard.
• Collaboration Tools: Wherever possible, make inventory data accessible. This might mean mounting a large printed map in the site office or using an online platform that key personnel can log into (e.g. via tablets on site). Even posting current stock quantities on a whiteboard can give a quick overview. The more visible and up-to-date your material picture is, the better the chances everyone will trust it and use it.

When multiple trades work on the same site, coordination is king. The laydown yard effectively becomes a shared resource — treat it like a public space that everyone must respect. By keeping communication open and data shared, you align your teams. This unified approach ensures, for example, that when the framing crew picks up studs, the structural engineer in the office can immediately see the drop in inventory and reorder if needed, preventing future delays.

6. Leveraging Visual Mapping for Inventory Visibility

In today’s projects, manual lists and maps are often inadequate for full visibility. Modern inventory management solutions turn the entire laydown yard into a living, interactive map. Here’s what such a map-based system brings to the table, seamlessly tying together all the best practices above:

• Custom Interactive Yard Maps: With the right software, you can create a 2d digital twin of your yard layout. Define each zone, shelf, rack, and open area on the map exactly as in the real world. Then assign every stored item to its location on the map. For example, map out “Steel Storage – Zone A”, “Mechanical Zone Bin 3”, or “Electrical Container” as clickable objects. This way, managers and tradespeople navigate the space on-screen just as they would in reality. You get immediate clarity on where everything is.
• Real-Time Location Tracking: When materials are received or moved, the map updates dynamically. For instance, scanning a barcode at a shelf automatically increases the count of that item in that location. Drag-and-drop interfaces make it as easy as dragging an item icon from one bin to another on the map to record a transfer. Now, everyone who looks at the map sees the current status. If the plumber takes PVC pipes to a trench, marking that move on the map (even via phone) reflects instantly. This real-time update eliminates the lag of paper logs and prevents data discrepancies between departments.
• Multi-Department Layers: You can configure the system so each department or trade sees what matters to them. Imagine a filter or layer setting: the HVAC team turns on the “Mechanical” layer to view all pumps, ducts, and HVAC stock, while the electrical team toggles to see conduits, panels, and cable reels. However, all these layers live on the same underlying map. Cross-department visibility is inherent — if one team touches inventory, the change is visible to all. This avoids situations where one crew unknowingly uses stock earmarked for another. Everyone literally sees the yard the same way.

• Inventory Counts and Alerts: As you assign items to locations, the system keeps totals. You can also set reorder thresholds. For example, if steel rods drop below a certain number, an alert flags the need for more. This proactive signaling means crews aren’t surprised by an empty rack. Some systems even allow attaching photos to items or locations, which can help identify obscure components at a glance. Centralised counting plus automated alerts gives you much higher accuracy.
• Cloud Access: Any device with a browser can access the map and data, as long as you have an internet connection. This means a site manager with a tablet or laptop can pull up the inventory map just as easily as an office manager. Multiple users can view or update simultaneously. Crucially, updates sync in the cloud in real time. So whether someone scans in inventory from a forklift or logs a usage from the trailer, the system unifies these inputs instantly. No more two teams working with conflicting stock figures.
• Drag-and-Drop Transfers: Simplify complex moves with a visual interface. If you need to relocate an entire pallet of bolts from the main laydown yard to a trailer near the installation site, you simply drag its icon to the new “bin” on the digital map. The system records the quantity transfer along with date/time/user. This approach replaces clumsy spreadsheets with intuitive actions. The outcome: zero ambiguity about who moved what and when.
• Single Source of Truth: All this technology ensures that the inventory map is your shared reference point. Teams don’t need separate stock lists; the map is the list. If there are any doubts (“how many 4-inch flanges do we have?”), a quick click shows the answer. Since the map is structured by physical location, it’s easy to see if something has moved or gone missing. For example, if a rack that should hold 100 items suddenly shows only 80, you know those 20 were used. No more buried notes or memory lapses.

By using a map-driven platform like CyberStockroom (for example), you effectively give all teams X-ray vision into the inventory. Weaved into your daily routine, it turns best practices into automatic workflows. Want to check before placing a material order? Simply glance at the map for stock counts. Need to onboard a new foreman? Just orient them on the interactive plan.

In short, a digital inventory map brings operational efficiency and cross-team alignment to the forefront. It reinforces every part of your laydown yard strategy – from the initial layout plan to the last delivery count.

7. Maintaining and Scaling Your Laydown Yard

Once your laydown yard is up and running, keep it that way with continuous attention:

• Review and Adjust: As the project progresses, materials will move on to the site. Reorganise the yard periodically so that upcoming-phase items are closest to the exit gates. If an area becomes empty, collapse zones to tighten the layout or expand where new materials come in. Adjust the digital map accordingly so it always matches the real yard.
• Audit and Report: Even with digital tracking, occasional physical audits are wise. Walk the yard, tick off counts, and ensure nothing is flagged incorrectly. Use this opportunity to clean up, remove expired or scrap materials, and rectify any loose ends. Many teams do a quick weekly check and a fuller count monthly.
• Leverage Historical Data: Over time, you’ll build a record of usage patterns. Use reports from your system to analyse which items move fastest and which sit idle. This can inform future procurement: for instance, if backup generators are consistently overstocked, you might reduce initial orders on the next project. Data-driven refinements save money and space.
• Train Continually: When new crews rotate in, brief them on your yard system. Share documentation or quick reference guides on how you’ve set up zones and processes. If you upgrade tools or workflows (like new barcode gear), retrain everyone. An investment in people’s understanding of the yard pays off in sustained accuracy.
• Integrate Feedback: Encourage teams to suggest improvements. Maybe pipe fittings would be easier to access if moved 10 metres left; or maybe a signpost needs a bigger font. The best-organised yards incorporate feedback from daily users. Regular team touchpoints can uncover these on-the-ground insights.

Maintaining an efficient laydown yard is an ongoing effort. By treating it as a critical project component rather than an afterthought, you keep materials flowing and workers productive.

Conclusion

Efficient material staging begins with a well-planned laydown yard and continues with disciplined organisation, documentation, and teamwork. On large sites, the stakes are high: misplaced parts or inaccessible materials can halt progress and inflate costs. By applying the best practices outlined here — clear layout zoning, thorough inventory tracking, proactive safety measures, and strong cross-department communication — you’ll build a staging area that serves the project’s needs at every stage.

Moreover, embracing modern tools transforms these practices from tedious chores into streamlined routines. A shared visual inventory map lets every team member see, in real time, what’s in the yard and where. This collective visibility eliminates silos and miscommunication. With all departments literally on the same page, decisions become faster and more accurate.

In essence, treating the laydown yard as an integral part of your construction workflow yields dividends in efficiency, safety, and collaboration. The result is a project that runs more predictably and finish on time and budget. By investing the time to set up and manage your laydown yard properly, you keep the materials conveyor moving and your teams aligned — so the right part is always at hand when the crew needs it.
